Buy Used Glass Lined Parts and Accessories for Sale

Buying used glass-lined parts and accessories through International Process Plants gives chemical, pharmaceutical, biotech, and specialty manufacturers access to agitators, baffles, cryo-lock blades, and pro-rings from Pfaudler, DeDietrich, UGE, 3V Tech, Schwelm, and other OEM manufacturers. Vessel sizes range from 19 L (5 gal) to 37,850 L (10,000 gal), with parts available in re-glassed, used, unused, and new conditions. ▶

IPP Group includes UGE (Universal Glasteel Equipment), founded in 1995, which re-glasses and stocks glass lined reactor components. Glass fire polish options include full fire polish (FF) for restored surface quality. Glass condition is graded, with many parts rated Very Clean (VC).

Pfaudler and DeDietrich are the most commonly stocked manufacturers across all part types. Buying used glass lined parts from IPP can save up to 50% of capital and 90% of lead time versus buying new OEM parts. ▲

50%

Capital Savings vs New

4

Part Types

1980

Established Since

15

Countries with Offices

Glass Lined Agitators

Pfaudler, DeDietrich, UGE

Glass Lined Baffles

DeDietrich, Pfaudler, Schwelm

Cryo-Lock Blades

Pfaudler, UGE

Glass Lined Pro-Rings

Pfaudler, DeDietrich

Buy Used Glass Lined Parts by Type

IPP stocks glass lined parts across 4 subtypes: agitators, baffles, cryo-lock blades, and pro-rings. Select a part type below to view featured inventory with full specifications.

Buy Used Glass Lined Agitators for Sale

IPP stocks glass lined agitator parts from Pfaudler, DeDietrich, UGE, 3V Tech, EHW Thale, and other manufacturers. Pfaudler RCI retreat curve impeller agitators are the most commonly stocked model. Available in re-glassed and used conditions.

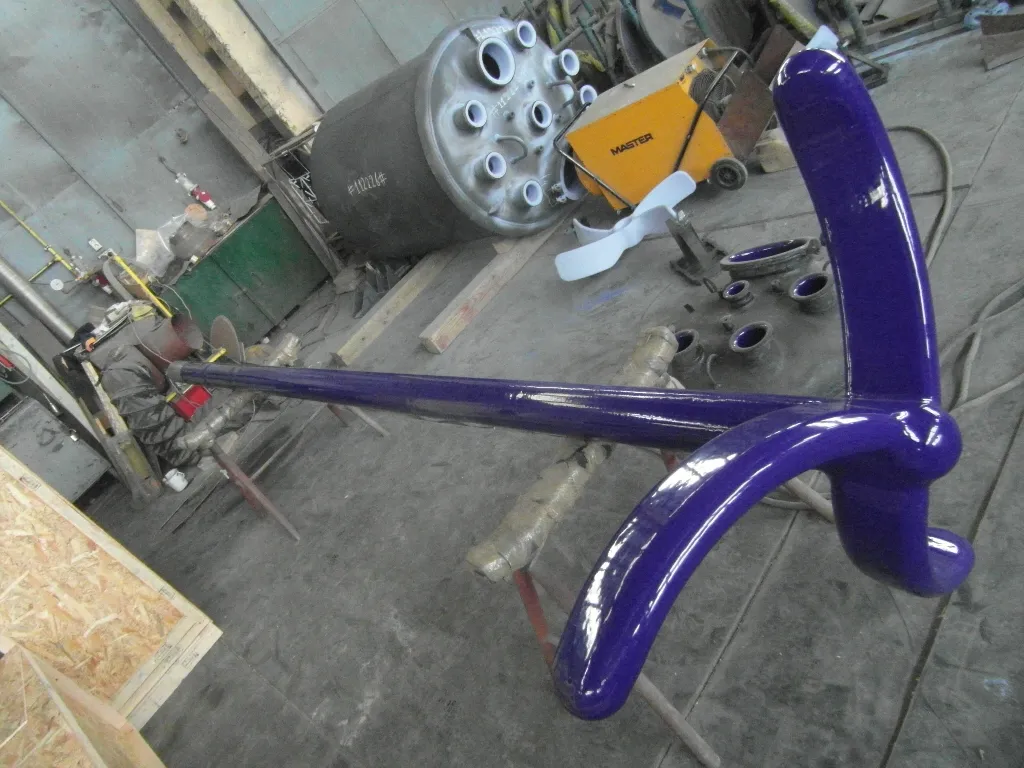

Pfaudler RCI Agitator — 15,150 L (4,000 gal)

Re-glassed Pfaudler RCI glass lined agitator. 3-blade retreat curve design for 15,150 L (4,000 gal) reactor vessels. Full fire polish with Very Clean glass condition.

Vessel Size:Fits 15,150 L (4,000 gal) vessel

Diameter:127 mm (5 in) dia

Length:4,650 mm (183 in) long

Span:1,350 mm (54 in) span

Glass Agitator Type:3 Blade Retreat Curve

Rotation:Counter-Clockwise

Glass Agitator Drive Model:TW drive

Agitator Details:7-8 TW drive end

Pfaudler RCI Agitator — 11,350 L (3,000 gal)

Re-glassed Pfaudler glass lined agitator. RCI 3-blade retreat curve for 11,350 L (3,000 gal) reactor vessels. Full fire polish, Very Clean glass condition.

Vessel Size:Fits 11,350 L (3,000 gal) vessel

Diameter:114.3 mm (4.5 in) dia

Length:4,150 mm (163.3 in) long

Span:1,350 mm (54 in) span

Glass Agitator Type:3 Blade Retreat Curve

Rotation:Counterclockwise

Glass Agitator Drive Model:RW drive

Agitator Details:6RW

Pfaudler RCI Agitator — 3,800 L (1,000 gal)

Re-glassed Pfaudler RCI glass lined agitator for 3,800 L (1,000 gal) reactor vessels. 3-blade retreat curve with full fire polish and Very Clean glass.

Vessel Size:Fits 3,800 L (1,000 gal) vessel

Diameter:88.9 mm (3.5 in) dia

Length:2,600 mm (102 in) long

Span:1,100 mm (44 in) span

Glass Agitator Type:3 Blade Retreat Curve

Rotation:Counterclockwise

Glass Agitator Drive Model:DTW drive

Agitator Details:5DTW

Buy Used Glass Lined Baffles for Sale

IPP stocks glass lined baffle parts from DeDietrich, Pfaudler, 3V Tech, Schwelm, and UPE Romania. Baffle types include beavertail and fin baffle designs with removable or integral tips. Available in re-glassed condition with full fire polish.

DeDietrich Beavertail Baffle — 15,150 L (4,000 gal)

Re-glassed DeDietrich beavertail baffle for 15,150 L (4,000 gal) reactor vessels. Flange mount DN 6″-300# with removable tip. Full fire polish, Very Clean glass.

Vessel Size:Fits 15,150 L (4,000 gal) vessel

Diameter:85.7 mm (3.4 in) dia

Length:3,250 mm (127.5 in) long

Span:104.8 mm (4.1 in) span

Mounting Details:Flange mount DN 6″-300#

Tip Type:Removable tip

Removable Tip Thread Size:Removable tip thread: 5/8″-18 UNF

Pfaudler Fin Baffle — 7,550 L (2,000 gal)

Re-glassed Pfaudler fin baffle for 7,550 L (2,000 gal) reactor vessels. Flange mount with integral tip. Full fire polish, Very Clean glass condition.

Vessel Size:Fits 7,550 L (2,000 gal) vessel

Diameter:101.6 mm (4 in) dia

Length:2,900 mm (113.5 in) long

Span:228.6 mm (9 in) span

Mounting Details:Flange mount

Tip Type:Integral tip

Glass Baffle Type:Fin Baffle design

DeDietrich SA-3000 Baffle — 11,350 L (3,000 gal)

Re-glassed DeDietrich SA-3000 beavertail baffle for 11,350 L (3,000 gal) reactor vessels. Flange mount with integral tip. Full fire polish.

Vessel Size:Fits 11,350 L (3,000 gal) vessel

Diameter:139.7 mm (5.5 in) dia

Length:2,800 mm (110 in) long

Span:177.8 mm (7 in) span

Glass Baffle Type:Beavertail

Is Special:Special configuration

Mounting Details:Flange Mount

Tip Type:Integral tip

Buy Used Glass Lined Cryo-Lock Blades for Sale

IPP stocks glass lined cryo-lock blade parts from Pfaudler and UGE. Models include Pfaudler Cryo-Lock and UGE CBT (curved blade turbine) designs. Parts fit reactor vessels from 1,900 L (500 gal) to 30,300 L (8,000 gal).

Pfaudler Cryo-Lock Blades — 15,150 L (4,000 gal)

Re-glassed Pfaudler Cryo-Lock blade set for 15,150 L (4,000 gal) reactor vessels. 4.5 hub size with counterclockwise rotation. Full fire polish, Very Clean glass.

Vessel Size:Fits 15,150 L (4,000 gal) vessel

Hub size:Hub size: 4.5

CBT Span:CBT span: 1,100 mm (43 in)

PBT Span:PBT: 50.8 mm (2 in)

Rotation:Counterclockwise rotation

Glass Fire Polish:Full Fire Polish (FF)

Glass Condition:Very Clean (VC)

UGE CBT Blades — 15,150 L (4,000 gal)

Re-glassed UGE CBT (curved blade turbine) cryo-lock blades for 15,150 L (4,000 gal) reactor vessels. 4.5 hub size with clockwise rotation. Full fire polish, Very Clean glass.

Vessel Size:Fits 15,150 L (4,000 gal) vessel

Hub size:Hub size: 4.5

CBT Span:CBT span: 1,050 mm (41 in)

Rotation:Clockwise rotation

Glass Fire Polish:Full Fire Polish (FF)

Glass Condition:Very Clean (VC)

Pfaudler Cryo-Lock Blades — 1,900 L (500 gal)

Re-glassed Pfaudler Cryo-Lock blade set for 1,900 L (500 gal) reactor vessels. 3.5 hub size with clockwise rotation. Full fire polish, Very Clean glass.

Vessel Size:Fits 1,900 L (500 gal) vessel

Hub size:Hub size: 3.5

CBT Span:CBT span: 584 mm (23 in)

Rotation:Clockwise rotation

Glass Fire Polish:Full Fire Polish (FF)

Glass Condition:Very Clean (VC)

Buy Used Glass Lined Pro-Rings for Sale

IPP stocks glass lined pro-ring (protection ring) parts from Pfaudler, DeDietrich, 3V Tech, and UGE. Pro-rings protect glass lined reactor nozzles from chipping and damage at connection points. Hinge types include Pfaudler single hole and spring assist designs.

Pfaudler Protection Ring — 203 mm (8 in)

Re-glassed Pfaudler protection ring, 203.2 mm (8 in) diameter. Round design with Pfaudler single hole hinge. Full fire polish.

Diameter:203.2 mm (8 in) diameter

Length:203.2 mm (8 in) L

Width:203.2 mm (8 in) W

Hinge Type:Pfaudler Single Hole hinge

Is Round:Round design

Glass Fire Polish:Full Fire Polish (FF)

Pfaudler Pro Ring — 457 mm (18 in)

Re-glassed Pfaudler pro ring, 457.2 mm (18 in) diameter. Round design with spring assist hinge. Full fire polish, Very Clean glass.

Diameter:457.2 mm (18 in) diameter

Hinge Type:Pro Ring Spring Assist hinge

Is Round:Round design

Glass Fire Polish:Full Fire Polish (FF)

Glass Condition:Very Clean (VC) glass condition

Pfaudler Pro Ring — 356 mm (14 in)

Re-glassed Pfaudler pro ring, 355.6 mm (14 in) diameter. Spring assist hinge. Full fire polish, Very Clean glass condition.

Diameter:355.6 mm (14 in) diameter

Length:457.2 mm (18 in) length

Hinge Type:Pro Ring Spring Assist hinge

Glass Fire Polish:Full Fire Polish (FF)

Glass Condition:Very Clean (VC) glass condition

Buy Used Glass Lined Parts for Sale by Manufacturer

IPP stocks glass lined parts from a wide range of manufacturers, with Pfaudler and DeDietrich representing the deepest positions in our inventory. Buying from the original equipment manufacturer helps ensure compatibility with existing reactor infrastructure and replacement parts.

Buy Used Pfaudler Glass Lined Parts for Sale

Pfaudler is the deepest single-manufacturer position in IPP’s glass lined parts inventory. Available part families include RCI retreat curve agitators, beavertail and fin baffles, cryo-lock blades, and pro-rings in re-glassed, used, and unused conditions.

Pfaudler RCI Agitator — 15,150 L (4,000 gal)

Re-glassed Pfaudler RCI glass lined agitator. 3-blade retreat curve design for 15,150 L (4,000 gal) reactor vessels. Full fire polish with Very Clean glass condition.

Vessel Size:Fits 15,150 L (4,000 gal) vessel

Diameter:127 mm (5 in) dia

Length:4,650 mm (183 in) long

Span:1,350 mm (54 in) span

Glass Agitator Type:3 Blade Retreat Curve

Rotation:Counter-Clockwise

Glass Fire Polish:Full Fire Polish (FF)

Glass Condition:Very Clean (VC)

Pfaudler RCI Agitator — 3,800 L (1,000 gal)

Re-glassed Pfaudler RCI glass lined agitator for 3,800 L (1,000 gal) reactor vessels. 3-blade retreat curve, DTW drive, with stainless steel 316 seal area plating.

Vessel Size:Fits 3,800 L (1,000 gal) vessel

Diameter:88.9 mm (3.5 in) dia

Length:2,600 mm (102 in) long

Glass Agitator Drive Model:DTW drive, 5DTW

Seal Area Plating MOC:SS 316 seal area plating

Glass Fire Polish:Full Fire Polish (FF)

Glass Condition:Very Clean (VC)

Pfaudler Cryo-Lock Agitator — 3,800 L (1,000 gal)

Re-glassed Pfaudler cryo-lock glass lined agitator for 3,800 L (1,000 gal) reactor vessels. TW drive with stainless steel seal area plating.

Vessel Size:Fits 3,800 L (1,000 gal) vessel

Diameter:88.9 mm (3.5 in) dia

Length:3,000 mm (118.6 in) long

Span:737 mm (29 in) span

Glass Agitator Type:Cryo-Lock design

Glass Agitator Drive Model:TW drive, 5DTW drive end

Buy Used DeDietrich Glass Lined Parts for Sale

DeDietrich is the second deepest OEM position in IPP’s glass lined parts inventory. Available parts include agitators, beavertail baffles, and pro-rings across re-glassed, used, unused, and new conditions.

DeDietrich 62Q08 Agitator — 2,000 L (528 gal)

Re-glassed DeDietrich 62Q08 glass lined agitator. 3-blade retreat curve design for 2,000 L (528 gal) reactor vessels. Philadelphia drive model. Full fire polish, Very Clean glass.

Vessel Size:Fits 2,000 L (528 gal) vessel

Diameter:76.2 mm (3 in) dia

Length:3,850 mm (152 in) long

Span:1,100 mm (44 in) span

Glass Agitator Drive Model:Philadelphia drive model

Glass Fire Polish:Full Fire Polish (FF)

Glass Condition:Very Clean (VC)

DeDietrich Beavertail Baffle — 15,150 L (4,000 gal)

Re-glassed DeDietrich beavertail baffle for 15,150 L (4,000 gal) reactor vessels. Flange mount DN 6″-300# with removable tip. Full fire polish, Very Clean glass.

Vessel Size:Fits 15,150 L (4,000 gal) vessel

Diameter:85.7 mm (3.4 in) dia

Length:3,250 mm (127.5 in) long

Glass Baffle Type:Beavertail design, removable tip

Mounting Details:Flange mount DN 6″-300#

Glass Fire Polish:Full Fire Polish (FF)

Glass Condition:Very Clean (VC)

DeDietrich Pro-Ring — 355 mm (14 in)

New DeDietrich glass lined pro-ring, 355.6 mm (14 in) diameter. DeDietrich hinge type. Full fire polish, Very Clean glass condition.

Diameter:355.6 mm (14 in) diameter

Length:457.2 mm (18 in) length

Hinge Type:DeDietrich hinge typeCondition:New condition

Glass Fire Polish:Full Fire Polish (FF)

Glass Condition:Very Clean (VC)

Buy Used Glass Lined Parts from Other Manufacturers

Beyond Pfaudler and DeDietrich, IPP stocks glass lined parts from 3V Tech, UGE, Schwelm, EHW Thale, and UPE Romania. These parts span agitator, baffle, cryo-lock blade, and pro-ring categories.

3V Tech Agitator — 18,950 L (5,000 gal)

Unused 3V Tech glass lined agitator for 18,950 L (5,000 gal) reactor vessels. Dual tier design with 127 mm (5 in) shaft diameter.

Vessel Size:Fits 18,950 L (5,000 gal) vessel

Diameter:127 mm (5 in) shaft diameter

Length:4,850 mm (190 in) length

Dual Tier:Dual tier design

Condition:Unused condition

3V Tech Press Lock CBT Agitator — 18,950 L (5,000 gal)

Unused 3V Tech Press Lock CBT glass lined agitator for 18,950 L (5,000 gal) reactor vessels. 1,100 mm (43 in) span. Full fire polish, Very Clean glass.

Vessel Size:Fits 18,950 L (5,000 gal) vessel

Diameter:117.3 mm (4.6 in) shaft diameter

Span:1,100 mm (43 in) span

Glass Agitator Type:CBT (curved blade turbine) design

Glass Fire Polish:Full Fire Polish (FF)

Glass Condition:Very Clean (VC)

3V Tech Cryo-Lock Agitator — 22,700 L (6,000 gal)

Unused 3V Tech cryo-lock glass lined agitator for 22,700 L (6,000 gal) reactor vessels. 127 mm (5 in) shaft diameter, 1,100 mm (43 in) span.

Vessel Size:Fits 22,700 L (6,000 gal) vessel

Diameter:127 mm (5 in) shaft diameter

Span:1,100 mm (43 in) span

Glass Agitator Type:Cryo-Lock design

Condition:Unused condition

Buy Used Glass Lined Parts for Sale by Condition

IPP stocks glass lined parts in re-glassed, used, unused, needs reglass, and new condition grades. Choose the condition that matches your budget, timeline, and performance requirements.

Buy Re-Glassed Glass Lined Parts for Sale

Re-glassed parts are the deepest condition position in IPP’s glass lined parts inventory. These parts have received a new glass lining, full fire polish, and are graded Very Clean (VC), delivering restored surface quality at a fraction of new OEM cost.

Re-Glassed Pfaudler RCI Agitator — 3,800 L (1,000 gal)

Re-glassed Pfaudler RCI glass lined agitator for 3,800 L (1,000 gal) reactor vessels. 3-blade retreat curve, DTW drive. Full fire polish, Very Clean glass.

Condition:Re-glassed condition

Vessel Size:Fits 3,800 L (1,000 gal) vessel

Glass Agitator Type:3 Blade Retreat Curve, Counterclockwise

Glass Agitator Drive Model:DTW drive, 5DTW

Glass Fire Polish:Full Fire Polish (FF)

Glass Condition:Very Clean (VC)

Re-Glassed Pfaudler Fin Baffle — 7,550 L (2,000 gal)

Re-glassed Pfaudler fin baffle for 7,550 L (2,000 gal) reactor vessels. Flange mount with integral tip. Full fire polish, Very Clean glass condition.

Condition:Re-glassed condition

Vessel Size:Fits 7,550 L (2,000 gal) vessel

Diameter:101.6 mm (4 in) dia

Length:2,900 mm (113.5 in) long

Glass Baffle Type:Fin Baffle

Tip Type:Integral tip

Glass Fire Polish:Full Fire Polish (FF)

Glass Condition:Very Clean (VC)

Re-Glassed Pfaudler Cryo-Lock Blades — 15,150 L (4,000 gal)

Re-glassed Pfaudler Cryo-Lock blade set for 15,150 L (4,000 gal) reactor vessels. 4.5 hub size, counterclockwise rotation. Full fire polish, Very Clean glass.

Condition:Re-glassed condition

Vessel Size:Fits 15,150 L (4,000 gal) vessel

Hub size:Hub size: 4.5

CBT Span:1,100 mm (43 in)

PBT Span:50.8 mm (2 in)

Glass Fire Polish:Full Fire Polish (FF)

Glass Condition:Very Clean (VC)

Buy Used Glass Lined Parts for Sale

Good used glass lined parts are offered as-is at the lowest price point while retaining original OEM specifications. These parts were previously installed in production service and are available for immediate use or can be sent to UGE for re-glassing.

Used Pfaudler P Series Agitator — 75.7 L (20 gal)

Used Pfaudler P series glass lined agitator for 75.7 L (20 gal) reactor vessels. 3-blade retreat curve with 2.5TW/DTW drive end.

Condition:Used condition

Vessel Size:Fits 75.7 L (20 gal) vessel

Diameter:38.1 mm (1.5 in) dia

Length:857 mm (33.8 in) long

Span:406.4 mm (16 in) span

Glass Agitator Type:3 Blade Retreat Curve

Used Agitator — 1,150 L (300 gal)

Used glass lined agitator for 1,150 L (300 gal) reactor vessels. 88.9 mm (3.5 in) shaft diameter, 914 mm (36 in) span.

Condition:Used condition

Vessel Size:Fits 1,150 L (300 gal) vessel

Diameter:88.9 mm (3.5 in) dia

Length:1,850 mm (72 in) long

Span:914 mm (36 in) span

Material:Glasslined material

Used Agitator — 2,800 L (740 gal)

Used glass lined agitator for 2,800 L (740 gal) reactor vessels. 3-blade retreat curve with 139.7 mm (5.5 in) shaft diameter, 1,200 mm (47.2 in) span.

Condition:Used condition

Vessel Size:Fits 2,800 L (740 gal) vessel

Diameter:139.7 mm (5.5 in) dia

Length:2,700 mm (106 in) long

Span:1,200 mm (47.2 in) span

Glass Agitator Type:3 Blade Retreat Curve

Buy Unused Glass Lined Parts for Sale

Unused glass lined parts are factory-original components that have never been installed in production service. These parts offer new-equivalent performance at a meaningful discount versus ordering direct from the OEM.

Unused Pfaudler Agitator — 15,150 L (4,000 gal)

Unused Pfaudler glass lined agitator for 15,150 L (4,000 gal) reactor vessels. 3-blade retreat curve impeller with VS20 drive end.

Condition:Unused condition

Vessel Size:Fits 15,150 L (4,000 gal) vessel

Glass Agitator Type:3 Blade Retreat Curve

Agitator Details:VS20 drive end

Manufacturer:Pfaudler OEM

Unused Pfaudler Agitator — 7,550 L (2,000 gal)

Unused Pfaudler glass lined agitator for 7,550 L (2,000 gal) reactor vessels. 3-blade retreat curve impeller with VS20 drive end.

Condition:Unused condition

Vessel Size:Fits 7,550 L (2,000 gal) vessel

Glass Agitator Type:3 Blade Retreat Curve

Agitator Details:VS20 drive end

Manufacturer:Pfaudler OEM

Unused DeDietrich Glass-Loc Agitator — 7,550 L (2,000 gal)

Unused DeDietrich glass lined agitator with Glass-Loc design for 7,550 L (2,000 gal) reactor vessels. 88.9 mm (3.5 in) shaft diameter.

Condition:Unused condition

Vessel Size:Fits 7,550 L (2,000 gal) vessel

Diameter:88.9 mm (3.5 in) dia

Length:3,350 mm (132 in) long

Glass Agitator Type:Glass-Loc design

Manufacturer:DeDietrich OEM

Buy Glass Lined Parts That Need Reglass

Parts in “needs reglass” condition offer the lowest acquisition cost. IPP offers re-glassing through its UGE division, so these parts can be purchased and re-glassed as a bundled service.

Pfaudler Agitator (Needs Reglass) — 3,800 L (1,000 gal)

Pfaudler glass lined agitator requiring re-glassing, for 3,800 L (1,000 gal) reactor vessels. 3-blade retreat curve with 1,100 mm (44 in) span.

Condition:Needs Reglass condition

Vessel Size:Fits 3,800 L (1,000 gal) vessel

Diameter:88.9 mm (3.5 in) dia

Length:3,100 mm (122 in) long

Span:1,100 mm (44 in) span

Glass Agitator Type:3 Blade Retreat Curve

Pfaudler Agitator (Needs Reglass) — 3,800 L (1,000 gal)

Pfaudler glass lined agitator requiring re-glassing, for 3,800 L (1,000 gal) reactor vessels. 3-blade retreat curve with 1,100 mm (44 in) span, 3,300 mm (129 in) length.

Condition:Needs Reglass condition

Vessel Size:Fits 3,800 L (1,000 gal) vessel

Diameter:88.9 mm (3.5 in) dia

Length:3,300 mm (129 in) long

Span:1,100 mm (44 in) span

Glass Agitator Type:3 Blade Retreat Curve

RCI Agitator (Needs Reglass) — 11,350 L (3,000 gal)

RCI glass lined agitator requiring re-glassing, for 11,350 L (3,000 gal) reactor vessels. 3-blade retreat curve with1,350 mm (54 in) span.

Condition:Needs Reglass condition

Vessel Size:Fits 11,350 L (3,000 gal) vessel

Diameter:114.3 mm (4.5 in) dia

Length:4,150 mm (163 in) long

Span:1,350 mm (54 in) span

Glass Agitator Type:3 Blade Retreat Curve

Need a Specific Glass Lined Part? Ask IPP.

Tell us your reactor model, vessel size, and part type. Our team will match your specifications against glass lined parts in stock and provide a detailed quote.

Buying Used Glass Lined Parts vs Buying New

Buying used glass lined parts from IPP can save up to 50% of capital and 90% of lead time versus buying new OEM parts. Here is how used and new glass lined parts compare across key factors.

Factor	Used Part from IPP	New Part (OEM)
Part Cost	Significant savings vs new OEM price	Full OEM list price
Delivery Timeline	In-stock parts ready to ship	Extended lead times (new fabrication)
Available Part Types	Agitators, baffles, cryo-lock blades, pro-rings	Full OEM catalog
Manufacturers	Pfaudler, DeDietrich, UGE, 3V Tech, Schwelm & more	Single OEM manufacturer
Glass Condition	Re-glassed with Full Fire Polish, Very Clean rated	Factory new glass lining
OEM Compatibility	OEM parts with original specifications — exact reactor match	Built to specification
Inventory Depth	Agitators, baffles, cryo-lock blades, and pro-rings in stock today	Built to order
Refurbishment	Re-glassing via UGE division (2,700+ parts in stock)	New build from scratch

Advantages of Buying Used Glass Lined Parts from IPP

International Process Plants combines over 46 years of process equipment expertise, nearly 150 colleagues across 15 countries, and UGE’s inventory of 2,700+ glass lined parts to deliver replacement parts ready for your reactor.

Significant Cost Savings

Buying used glass lined parts from IPP can save up to 50% of capital and 90% of lead time versus buying new OEM parts. With parts in stock from multiple manufacturers, IPP offers a wide selection to match your budget and specifications.

Immediate Availability

In-stock glass lined parts from IPP are ready to ship. New OEM parts require extended lead times for fabrication and glass lining. When a reactor goes down, having immediate access to replacement agitators, baffles, and other parts minimizes production downtime.

Multiple OEM Manufacturers

IPP stocks glass lined parts from Pfaudler, DeDietrich, UGE, 3V Tech, Schwelm, EHW Thale, and other manufacturers. Every part is an original OEM component with traceable provenance for exact reactor compatibility.

Re-Glassed to Factory Quality

IPP offers re-glassed parts through its UGE (Universal Glasteel Equipment) division, founded in 1995, which stocks 700+ vessels and 2,700+ parts. Re-glassed parts receive full fire polish for restored glass surface quality.

Global Presence in 15 Countries

IPP operates offices in 15 countries: Brazil, Canada, China, Czech Republic, France, Germany, India, Italy, Mexico, Pakistan, Portugal, Romania, Turkey, United Kingdom, and United States. IPP has served 160,000+ customers worldwide.

Proven Process Reliability

IPP stocks agitators, baffles, cryo-lock blades, and pro-rings. Parts fit reactor vessels from 19 L (5 gal) to 37,850 L (10,000 gal). Multiple sizes, models, and configurations available for each part type.

How Ordering Used Glass Lined Parts Works

The process of purchasing replacement glass lined parts from IPP follows five steps, from identifying your reactor model to delivery.

1

Identify Your Reactor Model

Determine your reactor manufacturer (Pfaudler, DeDietrich, etc.), model number, and vessel size. This ensures exact part compatibility.

2

Match the Right Part

Share your reactor specs with IPP. Our team matches your reactor model against parts in stock — agitators, baffles, cryo-lock blades, and pro-rings.

3

Review Part Specifications

IPP provides a detailed part data sheet with dimensions, glass condition grade, fire polish status, mounting details, drive compatibility, and condition report.

4

Place Your Order

Confirm your order with IPP. In-stock parts are ready for immediate shipment. IPP also offers re-glassing through its UGE division if needed.

5

Packaging & Delivery

IPP coordinates packaging and delivery from offices in 15 countries worldwide. Glass lined parts require specialized packaging to protect the glass lining during transit.

Browse All Glass Lined Part Types

View the complete inventory for each glass lined part subtype. Each category page shows all available parts with full specifications and IMS stock numbers.

Glass Lined Agitators

Glass Lined Baffles

Glass Lined Cryo-Lock Blades

Glass Lined Pro-Rings

Industries That Buy Used Glass Lined Parts

IPP supplies used glass lined parts to manufacturers across multiple process industries worldwide. Glass lined parts are critical components in reactors handling corrosive, high-purity, and reactive materials.

Pharmaceutical

Chemical Processing

Biotechnology

Fine Chemicals

Agrochemicals

Food & Beverage

Cosmetics

Polymers & Resins

Paints & Coatings

Petrochemicals

Frequently Asked Questions About Buying Used Glass Lined Parts

Answers to the most common questions from procurement teams evaluating used glass lined replacement parts.

How many glass lined parts does IPP have in stock?

IPP and UGE stock glass lined parts across 4 subtypes: agitators, baffles, cryo-lock blades, and pro-rings. Parts are available from Pfaudler, DeDietrich, UGE, 3V Tech, Schwelm, EHW Thale, and other manufacturers. Browse the IMS inventory for current availability.

What types of glass lined parts does IPP stock?

IPP stocks types of glass lined parts: agitators (shaft and blade assemblies for reactor mixing), baffles (H-Baffle, Beavertail, Fin, Finger, D-Baffle, and Thin designs for flow optimization), cryo-lock blades (quick-change agitator blades from Pfaudler and UGE), and pro-rings (nozzle protection rings to prevent chipping at connection points). All parts are glass lined and available for reactors from multiple manufacturers.

What manufacturers of glass lined parts does IPP stock?

IPP stocks glass lined parts from Pfaudler, DeDietrich, UGE (Universal Glasteel Equipment), 3V Tech, Schwelm, EHW Thale, UPE Romania, and other manufacturers. Pfaudler is the most commonly stocked manufacturer across all part types. Contact IPP for availability from a specific manufacturer.

Does IPP stock parts for both Pfaudler and DeDietrich reactors?

Yes. IPP stocks glass lined parts from both Pfaudler and DeDietrich across multiple part types. Each part lists the specific reactor model, vessel size, and mounting details for exact compatibility matching. Contact IPP with your reactor model and we will identify matching parts from current inventory.

What is UGE (Universal Glasteel Equipment)?

UGE (Universal Glasteel Equipment) is an IPP Group company founded in 1995 that specializes in glass lined steel equipment. UGE stocks 700+ vessels and 2,700+ glass lined parts. UGE is a key source of the glass lined replacement parts listed in the IPP inventory.

What vessel sizes do the glass lined agitators fit?

Glass lined agitators in IPP's inventory fit reactor vessels from 26.5 L (7 gal) to 30,300 L (8,000 gal). The most common design is the 3-blade retreat curve impeller (RCI). Drive models include TW, DTW, and RW configurations. Contact IPP with your vessel size and drive type for matching agitators.

What baffle types are available?

IPP stocks multiple baffle designs including H-Baffle, Beavertail, Fin, Finger, D-Baffle, and Thin configurations. Baffles are available with removable tips (for maintenance access) or integral tips. All baffles feature flange mounting for standard reactor nozzle connections. Baffles fit vessels from 19 L (5 gal) to 37,850 L (10,000 gal).

What are cryo-lock blades?

Cryo-lock blades are quick-change agitator blade assemblies that attach to a reactor agitator shaft hub without traditional bolt-on mounting. IPP stocks Pfaudler Cryo-Lock and UGE CBT (curved blade turbine) designs. Available in hub sizes 3.5 and 4.5, fitting vessels from 1,900 L (500 gal) to 30,300 L (8,000 gal).

What sizes of pro-rings are available?

IPP stocks glass lined pro-rings in multiple diameters including 203.2 mm (8 in), 304.8 mm (12 in), 355.6 mm (14 in), and 457.2 mm (18 in). Hinge types include Pfaudler single hole and pro ring spring assist. Both round and non-round configurations are available. Contact IPP with your nozzle size for matching pro-rings.

How do I determine which glass lined part fits my reactor?

To match a glass lined part to your reactor, you need: reactor manufacturer and model (e.g., Pfaudler RA, DeDietrich SA-3000), vessel size in liters or gallons, part type needed (agitator, baffle, cryo-lock blades, or pro-ring), and for agitators, the drive model and rotation direction. Every part in IPP inventory lists these specifications on the IMS product page. Contact IPP with your reactor details and our team will identify exact matches.

How much can I save buying used glass lined parts versus new?

Buying used glass lined parts from IPP can save up to 50% of capital and 90% of lead time versus buying new OEM parts. The exact savings depend on part type, manufacturer, size, and condition. IPP provides detailed quotes with full specification matching on request. Contact IPP for pricing on specific parts from our current inventory.

How long does it take to receive glass lined parts from IPP?

In-stock glass lined parts are ready to ship. Glass lined parts require specialized packaging to protect the glass lining during transit. IPP ships from offices in 15 countries worldwide. Contact IPP for specific lead times and shipping details.

Does IPP handle shipping for glass lined parts?

IPP coordinates packaging and delivery for glass lined parts to your plant site. With offices in 15 countries and 160,000+ customers served worldwide, IPP has extensive experience in global parts logistics. Glass lined parts require specialized crating to prevent glass damage during transit.

Can I order multiple part types in a single purchase?

Yes. IPP stocks agitators, baffles, cryo-lock blades, and pro-rings that can all be ordered together. When scheduling reactor maintenance or a re-glassing project, ordering all required replacement parts from a single supplier simplifies procurement and ensures compatibility. Contact IPP with your complete parts list for a consolidated quote.

What does "re-glassed" mean for glass lined parts?

Re-glassed parts have received a new glass lining on the existing part. IPP offers re-glassing through its UGE (Universal Glasteel Equipment) division. Re-glassed parts receive full fire polish (FF) for restored surface quality.

What does "Very Clean (VC)" glass condition mean?

Very Clean (VC) is a glass condition grade that indicates the glass lining is in excellent condition with minimal to no defects visible on the surface. This is the highest condition grade that appears in IPP's glass lined parts inventory. Parts are graded after re-glassing and inspection.

What does "Full Fire Polish (FF)" mean?

Full Fire Polish (FF) indicates that the glass lined part has been fully fire-polished during the re-glassing process. Fire polishing smooths the glass surface and removes imperfections created during the glass application process. The majority of parts in IPP's inventory are rated Full Fire Polish.

Can IPP re-glass a part that I already own?

IPP offers re-glassing services through its UGE division, which specializes in glass lined steel equipment. UGE stocks 700+ vessels and 2,700+ parts. Contact IPP to discuss re-glassing your existing glass lined parts or vessels.

Looking for New Glass Lined Parts?

IPP Group supplies glass lined parts through its UGE (Universal Glasteel Equipment) division, which stocks 700+ vessels and 2,700+ parts. If you cannot find the exact part you need in our used inventory, contact IPP to discuss re-glassing services or new part sourcing.

Ready to Buy Glass Lined Parts?

IPP has supplied quality process equipment worldwide since 1980, serving 160,000+ customers. Tell us your reactor model and part requirements — our team will respond with matched inventory and pricing.

Factor

Used Part from IPP

New Part (OEM)

Part Cost

Significant savings vs new OEM price

Full OEM list price

Delivery Timeline

In-stock parts ready to ship

Extended lead times (new fabrication)

Available Part Types

Agitators, baffles, cryo-lock blades, pro-rings

Full OEM catalog

Manufacturers

Pfaudler, DeDietrich, UGE, 3V Tech, Schwelm & more

Single OEM manufacturer

Glass Condition

Re-glassed with Full Fire Polish, Very Clean rated

Factory new glass lining

OEM Compatibility

OEM parts with original specifications — exact reactor match

Built to specification

Inventory Depth

Agitators, baffles, cryo-lock blades, and pro-rings in stock today

Built to order

Refurbishment

Re-glassing via UGE division (2,700+ parts in stock)

New build from scratch
