When Should You Choose a Glass-lined Reactor Versus a Stainless Steel Reactor?

A glass-lined reactor uses a fused borosilicate glass coating on carbon steel to provide chemical inertness, while a stainless steel reactor relies on chromium-nickel alloys for mechanical strength and pressure tolerance. The right choice depends on your process chemistry, operating conditions, and lifecycle cost targets.

This guide covers construction and material properties, application-specific selection criteria, corrosion and durability performance, cost and maintenance planning, and sourcing strategies for both reactor types.

Glass-lined and stainless steel reactors differ in thermal conductivity, pressure ratings, and surface behavior. Stainless steel (316L) conducts heat at roughly 16.2 W/m·K, about 15 times faster than borosilicate glass at 1.1 W/m·K, while glass-lined vessels limit thermal shock to approximately 100°C (180°F) differential.

Glass-lined reactors are preferred in pharmaceutical API synthesis, fine chemical production, and halogenation reactions where metal ion leaching would compromise product purity. Standards such as DIN 28136, ISO 28721-1, ASME Section VIII, and PED govern design and lining integrity across global jurisdictions.

Stainless steel reactors dominate high-pressure hydrogenation, polymerization, and alkaline processes above pH 12 where glass linings dissolve. However, 316L remains vulnerable to chloride-induced pitting and stress corrosion cracking.

Glass-lined vessels typically carry a 20% to 40% price premium over comparable stainless steel units, yet total cost of ownership shifts based on chemical environment. Reglassing costs 35% to 50% of a new vessel’s price, while stainless steel repairs often happen on-site through welding and re-passivation.

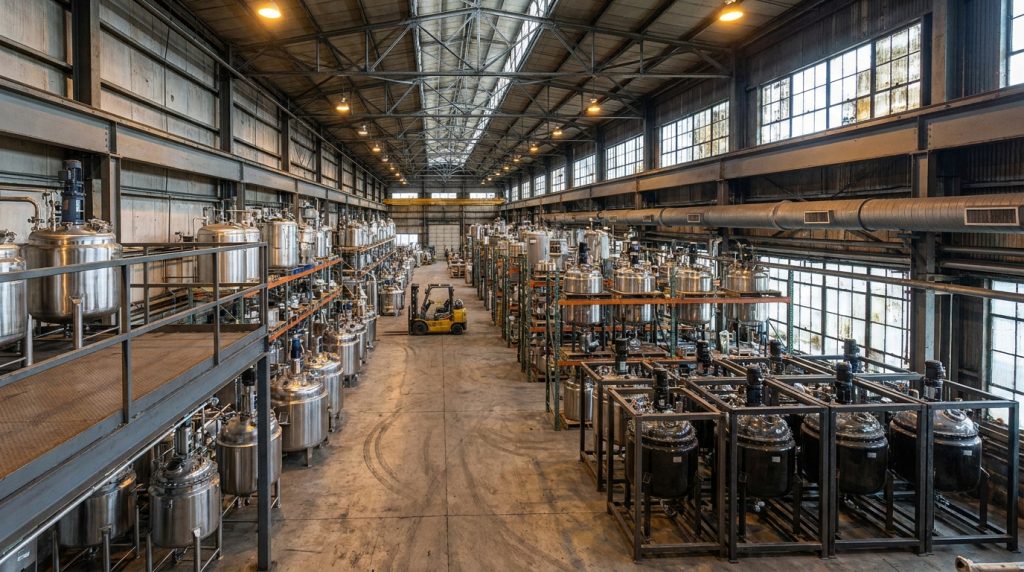

International Process Plants stocks both configurations as new surplus and quality used batch reactors across our warehouses in South Carolina, Germany, and the United Kingdom, with 10,000+ pieces of equipment available for rapid deployment.

What Are the Main Differences Between Glass-lined and Stainless Steel Reactors?

The main differences between glass-lined and stainless steel reactors involve base materials, thermal properties, corrosion profiles, and cost. The following subsections compare construction methods and the unique properties each type offers.

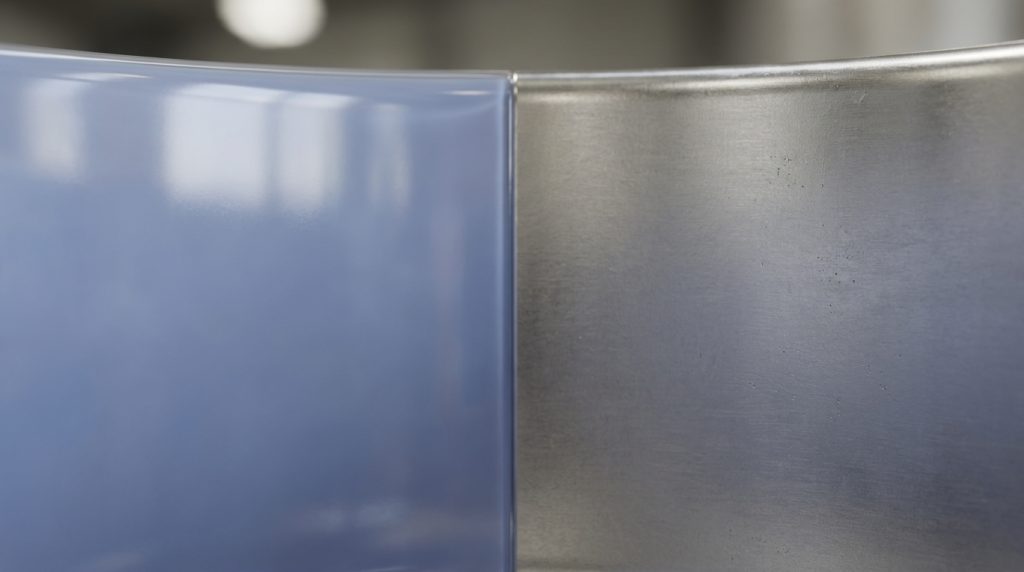

How Does the Construction of Glass-lined Reactors Differ from Stainless Steel Reactors?

The construction of glass-lined reactors differs from stainless steel reactors in both base substrate and surface engineering. Glass-lined vessels use a carbon steel shell coated with borosilicate glass (G3.3), which contains approximately 80% silica (SiO₂) and 13% boric oxide (B₂O₃). This fused glass layer provides chemical inertness but limits thermal shock tolerance to about 100°C (180°F) differential. Operating temperatures range from -30°C (-22°F) to 230°C (446°F).

Stainless steel reactors (SS304, SS316L) are iron-based alloys containing chromium and nickel. According to E-Z LOK material data, 316L stainless steel has a thermal conductivity of approximately 16.2 W/m·K (112 BTU·in/hr·ft²·°F), roughly 15 times higher than borosilicate glass at 1.1 W/m·K. Stainless steel also tolerates pressures up to 10 MPa (1,450 PSI) or higher. Electropolished 316L achieves surface roughness values as low as 0.1 µm (Ra), while glass-lined surfaces naturally provide smooth, non-porous finishes that prevent product adhesion.

For procurement engineers weighing these options, the thermal conductivity gap is often the deciding factor in heat-sensitive batch processes where fast temperature ramp rates matter.

What Unique Properties Does Each Type of Reactor Offer?

Each type of reactor offers distinct advantages shaped by its material composition:

• Glass-lined reactors provide complete chemical inertness, preventing metal ion leaching (chromium, nickel) into sensitive products.
• Glass-lined surfaces resist all concentrations of hydrochloric acid (HCl) up to 150°C (302°F), where 316L stainless steel suffers pitting and stress corrosion cracking.
• Stainless steel reactors deliver superior mechanical strength, higher pressure ratings, and faster heat transfer for aggressive thermal cycling.
• Stainless steel handles alkaline environments above pH 12 far better than glass linings, which dissolve under strong caustic conditions at elevated temperatures.

However, neither material is universal. Glass linings fail rapidly when exposed to hydrofluoric acid (HF) at any concentration, and 316L corrosion rates climb sharply outside ambient-temperature sulfuric acid service. According to a 2025 DataIntelo report, the global chemical reactors market reached approximately $12.4 billion and is projected to grow at a 6.3% CAGR through 2034, reflecting sustained demand for both reactor types across pharmaceutical, fine chemical, and petrochemical sectors.

Understanding these property differences helps engineers match reactor selection to specific process chemistries before evaluating corrosion resistance in greater detail.

In Which Industrial Applications Are Glass-lined Reactors Preferred?

Glass-lined reactors are preferred in pharmaceutical API synthesis, fine chemical production, and specialty chemical manufacturing where product purity and corrosion resistance outweigh mechanical strength requirements. The subsections below cover specific chemicals and processes that favor glass-lined designs, plus the industry standards influencing this choice.

What Chemicals or Processes Make Glass-lined Reactors More Suitable?

The chemicals and processes that make glass-lined reactors more suitable include acidic organic synthesis, halogenation reactions, pharmaceutical intermediate production, and any batch process where metal ion contamination would compromise product quality. Glass-lined steel’s inert surface prevents chromium and nickel leaching into high-value products, a critical requirement when synthesizing active pharmaceutical ingredients (APIs) at temperatures up to 230°C (450°F).

Processes commonly routed through glass-lined vessels include:

• Chlorination and bromination reactions involving hydrochloric acid at concentrations that would pit 316L stainless steel
• Esterification and condensation reactions producing corrosive organic acid byproducts
• Dye and pigment manufacturing where metal contamination alters color properties
• Agrochemical formulation involving acidic pesticide intermediates

According to Standard Group of Companies, glass-lined reactors are preferred for pharmaceutical API synthesis and fine chemicals because their inert surface prevents metal leaching that can contaminate high-value products. For procurement engineers evaluating reactor materials, this single property often justifies the 20% to 40% price premium over stainless steel in applications where batch purity determines regulatory compliance.

Are There Any Industry Standards That Influence This Choice?

Industry standards that influence the choice of glass-lined reactors include DIN 28136 for mechanical standardization, ISO 28721-1 for enamel quality, ASME Section VIII (US), PED (EU Pressure Equipment Directive), and CE marking requirements. These frameworks govern design pressures, dimensional tolerances, and lining integrity for glass-lined vessels across global jurisdictions.

Professor G.D. Yadav of the Institute of Chemical Technology highlights that for pharmaceutical synthesis, reactor material selection must consider the separation of chiral compounds and the potential for microwave-assisted reactions in non-aqueous media. This specialized requirement pushes pharma manufacturers toward glass-lined designs that guarantee zero catalytic interference from vessel walls.

Compliance with these standards also dictates inspection intervals, spark testing frequency, and documentation requirements that affect total cost of ownership. Understanding how corrosion resistance differs between reactor types further clarifies when each material meets regulatory expectations.

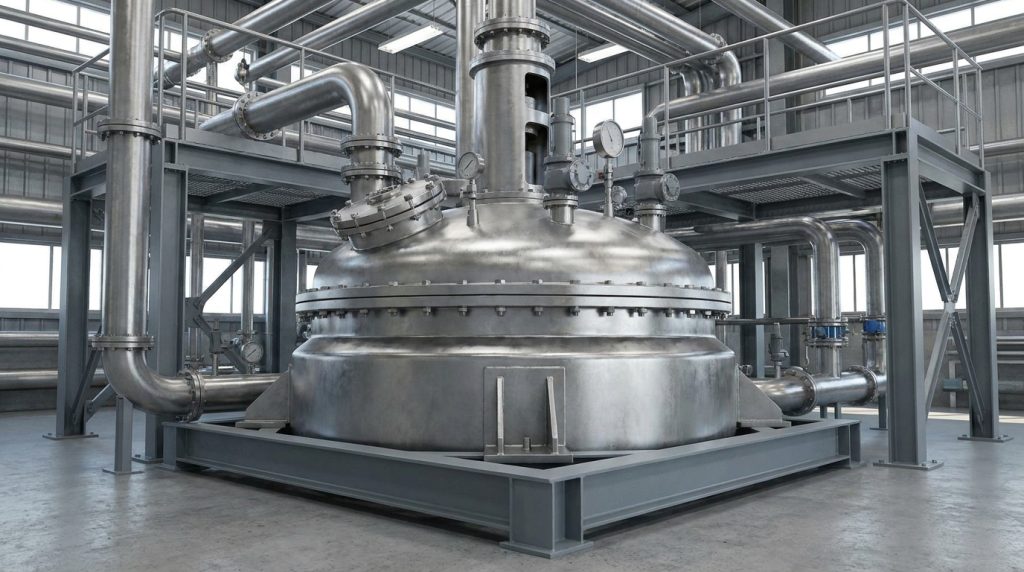

When Are Stainless Steel Reactors the Better Option?

Stainless steel reactors are the better option when processes demand high mechanical strength, elevated pressures, or broad temperature ranges. The following subsections cover the specific reactions and conditions that favor stainless steel, along with its limitations.

What Types of Reactions or Conditions Favor Stainless Steel Reactors?

The types of reactions or conditions that favor stainless steel reactors include high-pressure hydrogenation, polymerization, and processes requiring rapid heat transfer. Stainless steel alloys such as SS304 and SS316L tolerate pressures up to 10 MPa (1,450 PSI) or higher, far exceeding what glass-lined vessels safely handle.

Conditions that make stainless steel the clear choice:

• High-pressure reactions above 150 PSI (10.3 bar), common in petrochemical synthesis
• Processes requiring thermal conductivity of 16.2 W/m·K (112 BTU·in/hr·ft²·°F), roughly 15 times greater than borosilicate glass
• Alkaline environments above pH 12, where glass linings dissolve at elevated temperatures
• Rapid temperature cycling without thermal shock constraints

According to ZAIN Industrial LLC, stainless steel reactors dominate applications in petrochemicals, brewing, and biotechnology where high mechanical strength and the ability to handle high-pressure hydrogenation or polymerization are required. For most batch processing above 230°C (446°F), stainless steel is the only practical metallic option without resorting to exotic alloys.

Are There Limitations to Using Stainless Steel Reactors?

There are limitations to using stainless steel reactors, particularly in chloride-rich and strongly acidic environments. 316L stainless steel is prone to pitting and stress corrosion cracking when exposed to hydrochloric acid or high-chloride process streams, conditions where glass-lined alternatives excel.

Key limitations include:

• Susceptibility to chloride-induced pitting at elevated temperatures
• Potential for nickel and chromium ion leaching into sensitive pharmaceutical or food-grade products
• Corrosion rate increases significantly when sulfuric acid concentration or temperature deviates from ambient conditions

With proper maintenance, stainless steel reactors can exceed a 20-year service life, according to Across International. However, when product purity requires zero metal contamination, or when process chemistry involves concentrated acids, glass-lined vessels remain the safer selection.

With stainless steel’s strengths and boundaries defined, understanding how corrosion resistance compares across both reactor types clarifies the full picture.

How Do Corrosion Resistance and Durability Compare Between These Reactor Types?

Corrosion resistance and durability differ significantly between glass-lined and stainless steel reactors depending on the chemical environment. The following subsections compare performance in corrosive service and outline typical maintenance requirements.

How Do Both Reactors Perform in Highly Corrosive Environments?

Both reactors perform differently in highly corrosive environments based on the specific acids, alkalis, and chloride concentrations involved. Glass-lined steel offers exceptional resistance to all concentrations of hydrochloric acid (HCl) at temperatures up to 150°C (302°F), whereas 316L stainless steel is prone to pitting and stress corrosion cracking in chloride-rich environments, according to Glasskem’s corrosion lifecycle comparison.

However, glass-lined reactors are rapidly attacked by hydrofluoric acid (HF) at any concentration, as well as by hot concentrated phosphoric acid and strong alkalis above pH 12 at elevated temperatures. Stainless steel grades like 316L handle 93% sulfuric acid well at ambient temperatures, though corrosion rates climb as temperature increases.

For most chloride-bearing processes, glass-lined vessels remain the safer long-term choice.

What Are the Typical Maintenance Needs for Each Reactor Type?

The typical maintenance needs for each reactor type center on inspection frequency, repair complexity, and long-term durability expectations.

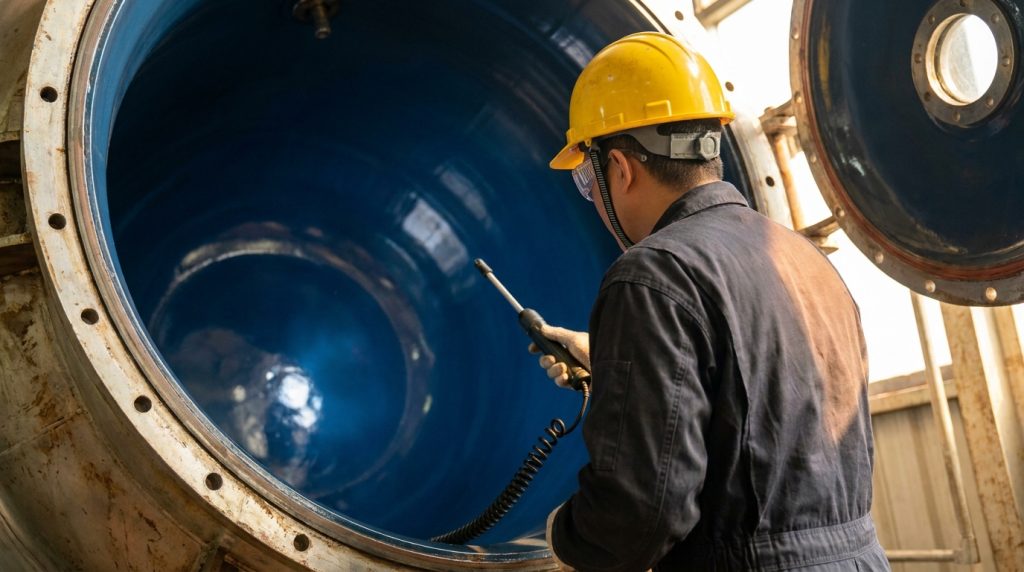

• Glass-lined reactors require routine spark testing to detect lining defects before the carbon steel substrate corrodes.
• Stainless steel reactors need periodic inspection for pitting, crevice corrosion, and weld decay, but tolerate minor mechanical impacts without catastrophic failure.
• Glass linings cannot be field-repaired for major damage; reglassing is the standard remedy.

According to Chemical Engineering Magazine, reglassing a damaged vessel can cost approximately 35% to 50% of a new reactor’s price, with turnaround measured in weeks rather than months for new fabrication. Stainless steel reactors, by contrast, can often be repaired on-site through welding and re-passivation. This repairability difference significantly affects total downtime planning.

With corrosion behavior clarified, cost considerations become the next factor in selecting the right reactor material.

What Are the Cost Considerations When Selecting Between Glass-lined and Stainless Steel Reactors?

The cost considerations when selecting between glass-lined and stainless steel reactors include upfront purchase price, long-term maintenance expenses, and total lifecycle value. The following subsections compare acquisition costs and ongoing repair expenditures.

How Do Upfront Costs and Long-term Expenses Compare?

Upfront costs for glass-lined reactors typically run 20% to 40% higher than comparable stainless steel vessels in equivalent size ranges, according to Verified Market Reports. This premium reflects the complex multi-stage firing process required to fuse borosilicate glass enamel onto carbon steel substrates.

Long-term expenses shift the calculation. Stainless steel reactors can exceed a 20-year lifespan with proper maintenance, reducing annualized capital costs. Glass-lined vessels may require earlier intervention if lining integrity degrades. However, in highly corrosive acid service, stainless steel replacement cycles shorten dramatically, while glass-lined vessels maintain consistent performance. Total cost of ownership depends on the specific chemical environment, not purchase price alone.

Do Maintenance and Repair Costs Differ Significantly?

Maintenance and repair costs differ significantly between these reactor types. Reglassing a damaged glass-lined vessel can cost approximately 35% to 50% of a new reactor’s price, with turnaround times measured in weeks rather than the months required for new fabrication, as reported by Chemical Engineering Magazine.

Key maintenance cost differences include:

• Glass-lined reactors require routine spark testing and visual inspection to detect lining defects before substrate corrosion begins.
• Stainless steel reactors need periodic passivation, weld inspection, and wall-thickness measurements, though repairs are often simpler field operations.
• Glass lining damage from mechanical impact or thermal shock can escalate rapidly if undetected, potentially compromising the carbon steel base.

For procurement teams evaluating used equipment, sourcing reactor vessels with documented maintenance histories reduces lifecycle cost uncertainty considerably.

With cost factors clarified, the next step is evaluating how process parameters shape the final selection.

What Are the Key Points to Evaluate When Deciding Which Reactor to Use?

The key points to evaluate when deciding which reactor to use include process scale, operating temperature and pressure limits, safety requirements, and regulatory compliance. The following subsections address how these factors guide the glass-lined versus stainless steel decision.

How Do Process Scale, Temperature, and Pressure Requirements Affect the Decision?

Process scale, temperature, and pressure requirements affect the decision by determining which reactor material can safely and efficiently handle the intended chemistry. Stainless steel reactors (SS304, SS316L) tolerate pressures up to 10 MPa (1,450 PSI) or higher, making them suitable for high-pressure hydrogenation and polymerization at large scale. Glass-lined reactors operate within -30°C to 230°C (-22°F to 446°F) and must limit thermal shock to approximately 100°C (180°F) between the vessel wall and process fluid.

For large-volume, high-pressure applications, stainless steel provides the mechanical robustness needed. Glass-lined vessels suit moderate-pressure batch processes where chemical inertness outweighs the need for extreme operating conditions. Matching your process parameters to these material limits prevents premature vessel failure and unplanned downtime.

What Role Do Safety and Regulatory Considerations Play?

Safety and regulatory considerations play a critical role because reactor vessels must meet international pressure and material standards before commissioning. According to a technical overview by Kedar Yadav on LinkedIn, reactor design and fabrication must comply with standards such as ASME Section VIII (US), the Pressure Equipment Directive or PED (EU), and ISO 28721-1 for enamel quality to ensure safety under pressure.

Key compliance factors include:

• ASME Section VIII certification for pressure vessel integrity.
• PED compliance and CE marking for European market deployment.
• ISO 28721-1 verification of glass-enamel adhesion and porosity.
• Spark testing protocols to detect glass-lining defects before operation.
• CRN (Canadian Registration Number) for installations in Canadian provinces.

Glass-lined vessels require periodic spark testing to confirm lining integrity, while stainless steel vessels demand weld inspection and material traceability documentation. For pharmaceutical applications, both types must demonstrate that wetted surfaces do not introduce contaminants into the process stream.

Understanding which standards apply in your operating jurisdiction simplifies procurement and avoids costly retrofit requirements after delivery.

How Can International Process Plants Help You Source the Right Reactor for Your Needs?

International Process Plants can help you source the right reactor by offering new surplus and quality used batch reactors in both glass-lined and stainless steel configurations from our inventory of 10,000+ pieces of equipment.

Can Universal Glasteel Equipment or Gale Process Solutions Assist with Glass-lined or Alloy Reactor Selection?

Yes, Universal Glasteel Equipment (UGE) and Gale Process Solutions (GPS) can assist with glass-lined or alloy reactor selection through distinct specializations. UGE focuses on glass and glass-lined equipment, offering options for corrosive acid processes where inert surfaces prevent contamination. GPS focuses on new alloy equipment, including stainless steel and Hastelloy C-276 reactor vessels for high-pressure or alkaline applications.

All reactor equipment supplied through International Process Plants complies with international standards such as ASME Section VIII (US), PED (EU), and ISO 28721-1 for enamel quality, according to ISPE guidelines. With warehouses in South Carolina, Germany, and the United Kingdom, International Process Plants supports procurement across global jurisdictions where CE marking, PED compliance, and ASME certification are required.

What Are the Key Takeaways About Choosing Between Glass-lined and Stainless Steel Reactors?

The key takeaways about choosing between glass-lined and stainless steel reactors center on matching reactor material to your specific process chemistry, operating conditions, and lifecycle budget:

• Glass-lined reactors suit highly corrosive acid environments, pharmaceutical API synthesis, and processes requiring product purity free from metal ion leaching.
• Stainless steel reactors (316L, 304) excel in high-pressure applications exceeding 150 PSI (10.3 bar), alkaline processes, and operations requiring rapid heat transfer.
• Thermal shock tolerance, maintenance costs, and regulatory compliance (ASME, PED, CE marking) should factor into every procurement decision.
• Purchasing new surplus and quality used reactors from International Process Plants reduces lead times from months to weeks while meeting the same fabrication standards as new equipment.

International Process Plants currently has batch reactors available in both configurations, ready for inspection at our facilities.
